MARH Series

The MARH series turntable is driven by a frameless motor. Since the motor is non-contact, there is no need to maintain brushes or gears. The turntable is supported by NSK angular contact ball bearings and is equipped with incremental optical encoders, which enables the MARH series turntable to achieve stable and high-performance operation at a low cost.

Product features:

High response speed

Maximum load force up to 35 kg

Flexible configuration options (customizable hollow version)

Extremely smooth movement by frameless direct drive motor

High speed up to 1500rpm and provide excellent bandwidth for aggressive motion curves

Resolution 1arcsec, repeat positioning accuracy 10arcsec, positioning accuracy 20arcsec

Keywords: Optics

Classification:

Mechanical direct drive rotary table

Online Message

Product inquiry

E-mail:

sales01@zssp-tech.com

Product Description

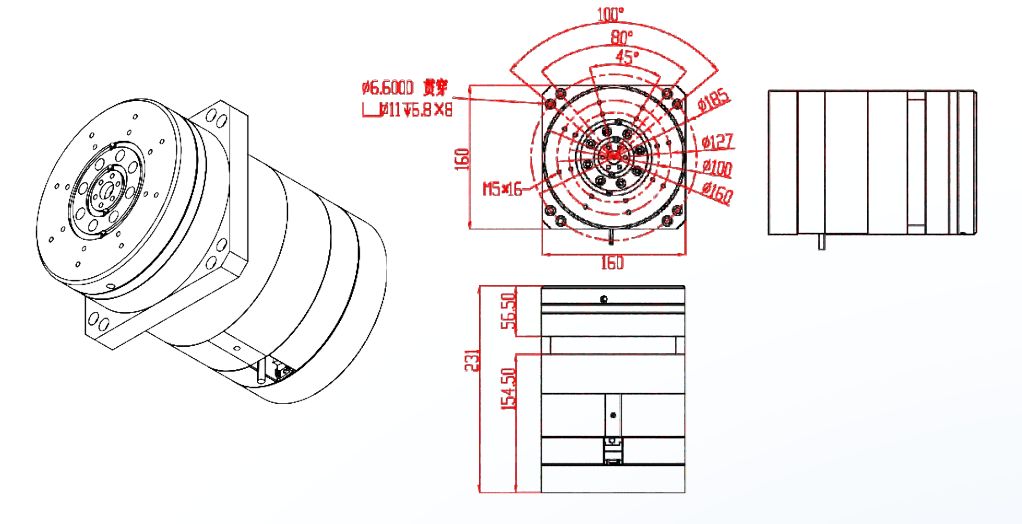

Product size plan

Mechanical Specifications	MARH100	MARH150	MARH200
Table Size	100 mm	150 mm	200 mm
Encoder resolution	27.
Angle accuracy	±20 arcsec
One-way repeat accuracy	±10 arcsec
Bidirectional repeat accuracy	±8 arcsec
Maximum speed	800 rpm		600 rpm
Maximum acceleration (no load)	850 wheel/s²	500 wheel/s²	400 wheel/s²
Rated torque (no-load)	1.3 n· m	6.5 n· m	13 n· m
Maximum torque (no load)	2.7 n· m	12.7 n· m	24.7 n· m
Resolution	1 arcsec
radial runout	10 one	12 one	14 one
Axial runout	12 one
Minimum step	3 arcsec
Load capacity (level)	8 kg	28 kg	35 kg
Load capacity (vertical)	5 kg	21 kg	28 kg
Platform quality	5.6 kg	8.5 kg	15.4 kg
Materials	Anodized aluminum
Average service life	10000h

Remarks:

The default test point position is 25mm above the table, and the single-axis index and the performance index of the multi-axis system are related to the actual load and the position of the working point;
For higher demand, it needs to be equipped with Heidelhain grating ruler and linear amplifier;
No load, need to configure the corresponding power of the linear amplifier,
The payload specification assumes that the payload is centered on the axis;
In order to ensure the implementation and repeatability of the specification over a long period of time, the ambient temperature must be controlled within a range of 1°C per 24 hours.
