APL210 Series

The APL210 series is driven by a linear motor without backlash, in which the porous medium produces a uniform gas film to realize the smooth movement of the motion table without friction and vibration. Due to the non-contact structure and the system is equipped with a high-precision grating ruler, the following error of the system has been improved compared with the mechanical guide structure, and the positioning accuracy and repeated positioning accuracy have been significantly improved.

Product features:

High response speed
High rigidity design
High flexible cable management
Nanoscale positioning accuracy
porous medium air bearing
Customizable (customizable ceramic structure)
High dynamic performance (cut-off frequency greater than 100Hz)
Repeated positioning accuracy ± 80nm, positioning accuracy ± 200nm resolution 1nm,

Keywords: Optics

Classification:

Air-floating horizontal motion table

Online Message

Product inquiry

E-mail:

sales01@zssp-tech.com

Product Description

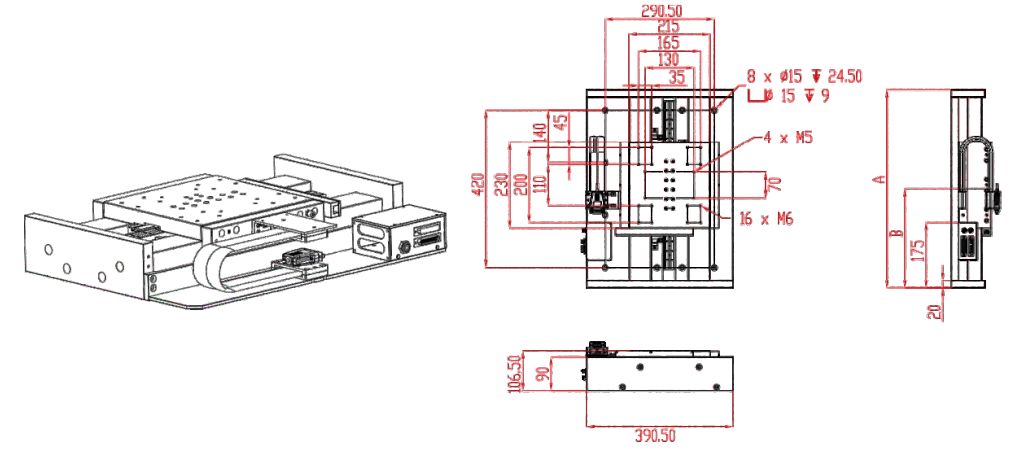

Product size plan

Mechanical Specifications	APL210-150	APL210-200	APL210-300
Travel	100 mm	200 mm	300 mm
absolute positioning accuracy	Nope. 200 nm	Nope. 250 nm	Nope. 350 nm
Repetitive positioning accuracy (unidirectional)	Nope. 100 nm		Nope. 150 nm
Repetitive positioning accuracy (bidirectional)	Nope. 150 nm		Nope. 200 nm
Resolution	0.1 nm
Straightness	± 0.5 um	± 0.7 um	± 1 um
Flatness	± 0.5 um	± 0.7 um	± 1 um
Dewing	±1.5 arcsec	±2.5 arcsec	±3.5 arcsec
Pitch	±1.5 arcsec	±2.5 arcsec	±3.5 arcsec
Scroll	±1.5 arcsec	±2.5 arcsec	±3.5 arcsec
Maximum speed	500 mm/s
Maximum acceleration (no load)	0.8 g
Minimum step	0.5 nm
Load capacity (level)	25 kg
Load capacity (eccentric)	15 kg
Partial moving weight	6.7 kg
Platform quality	21.5 kg	25.6 kg	30.2 kg
Materials	Anodized aluminum
Average service life	15000h

Remarks:

The default test point position is 25mm above the table, and the single-axis index and the performance index of the multi-axis system are related to the actual load and the position of the working point;
For higher demand, it needs to be equipped with Heidelhain grating ruler and linear amplifier;
No load, need to configure the corresponding power of the linear amplifier,
The payload specification assumes that the payload is centered on the axis;
In order to ensure the implementation and repeatability of the specification over a long period of time, the ambient temperature must be controlled within a range of 1°C per 24 hours.
